Using the Physics Engine in Carrara

Carrara has a built-in physics engine which is very capable of calculating dynamic animations. Here’s how to setup a basic scene with physics.

Physics are already setup in every new scene with a default gravity. Feel free to change the Simulation Accuracy and Geometric Fidelity different results before messing with each single object. You can find these properties under Scene – Physics:

physics

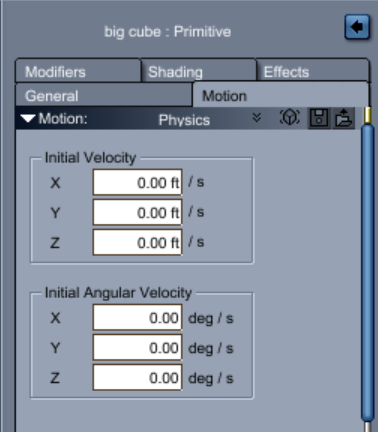

All we have to do next is to make our objects participate in the engine and have Carrara calculate the physics. Select an object, then head over to Motion and change the drop down menu to Physics (it’s set to Keyframe by default).

Here you can change the starting behaviour of your object, but the defaults work well for a quick test. Repeat this setup for every object you’d like to participate.

physics2

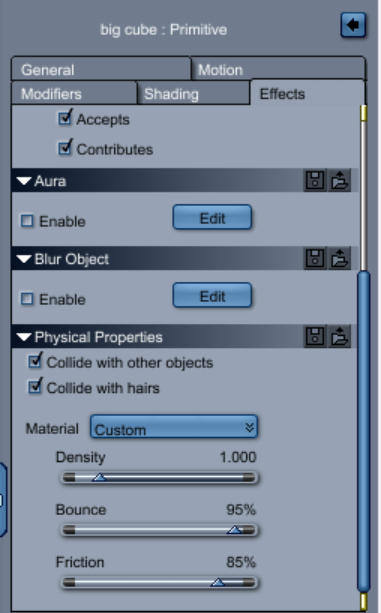

To change the properties of an object (such as weight, bounciness, etc) head over to the Effects tab and look for a section called Phisical Properties. There are some materials to choose from (such as Clay, Ice, Metal, etc) or you can create your own based on Density, Bounce and Friction.

physics4

Animate this thing

Once setup, decide how long you’d like the simulation to be and adjust your animation duration accordingly. The default is 4 seconds, but you may be interested in events that happen beyond that. Simply drag the little yellow triangle in the timeline to change the duration.

Now we need to ask Carrara to Simulate Physics by pressing that “bone dipped in sauce” icon on the far left side in the top bar, next to the greyed out hand icon. You need to do this every time you make a change to the scene or the objects that participate in the physics engine.

physics3

Either move your timeline scrubber to a desired frame, or render the animation out.
